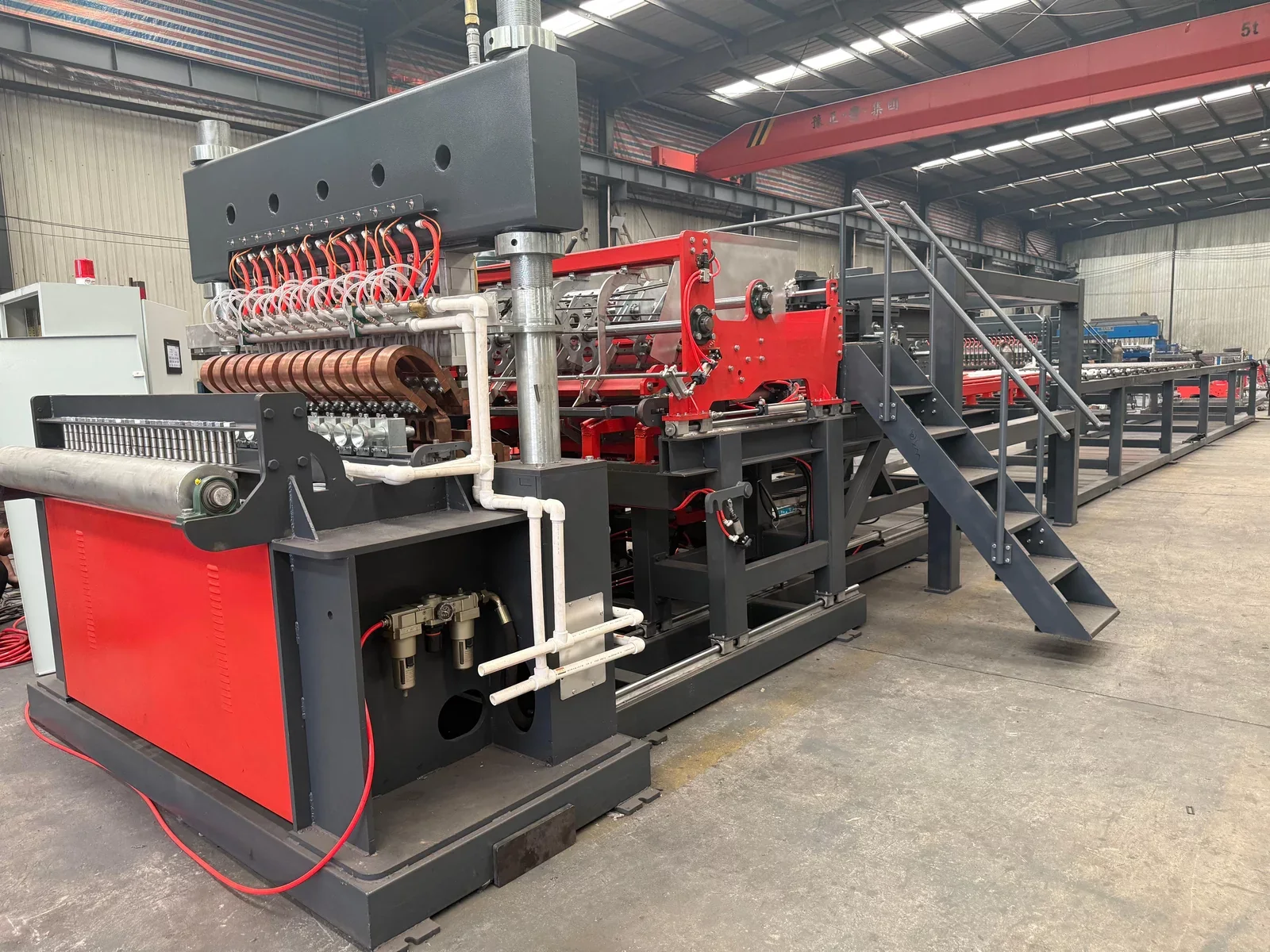

Mining Support Mesh Welding Machine
The Mining Support Mesh Welding Machine is built for the demanding wire diameters and panel formats used in mining, combining a high-rigidity welding frame, model-specific transformer banks and servo mesh pulling. It produces consistent support mesh while reducing the manual positioning and variation common to older equipment.All units are manufactured to ISO 9001 quality standards.
Key Features of the Mining Support Mesh Welding Machine
- Heavy-duty frame for 3–8 mm low-carbon or galvanized wire
- Model-specific welding head and transformer configuration
- Adjustable longitudinal and transverse spacing
- Servo mesh pulling with controlled panel length

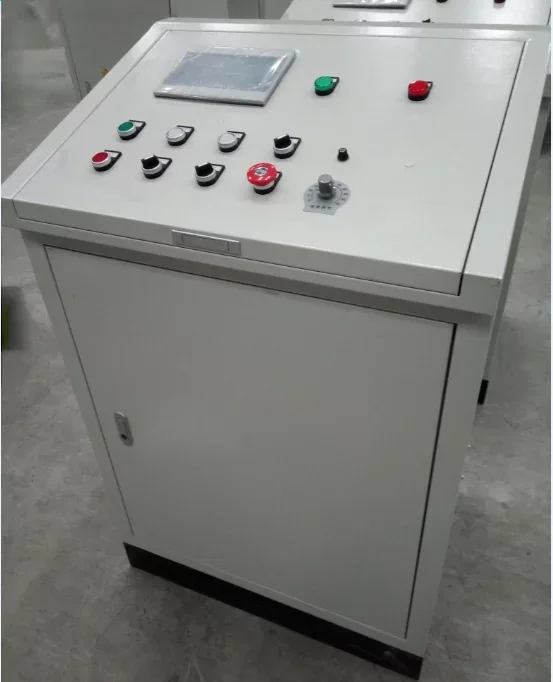

- PLC touchscreen recipes and automatic fault shutdown
- Factory trial production before shipment
Production Process
How This Mining Mesh Welding Line Works
Heavy-wire preparation
Payoff and guiding equipment handles the larger wire formats used for mine roadway and tunnel-support mesh.

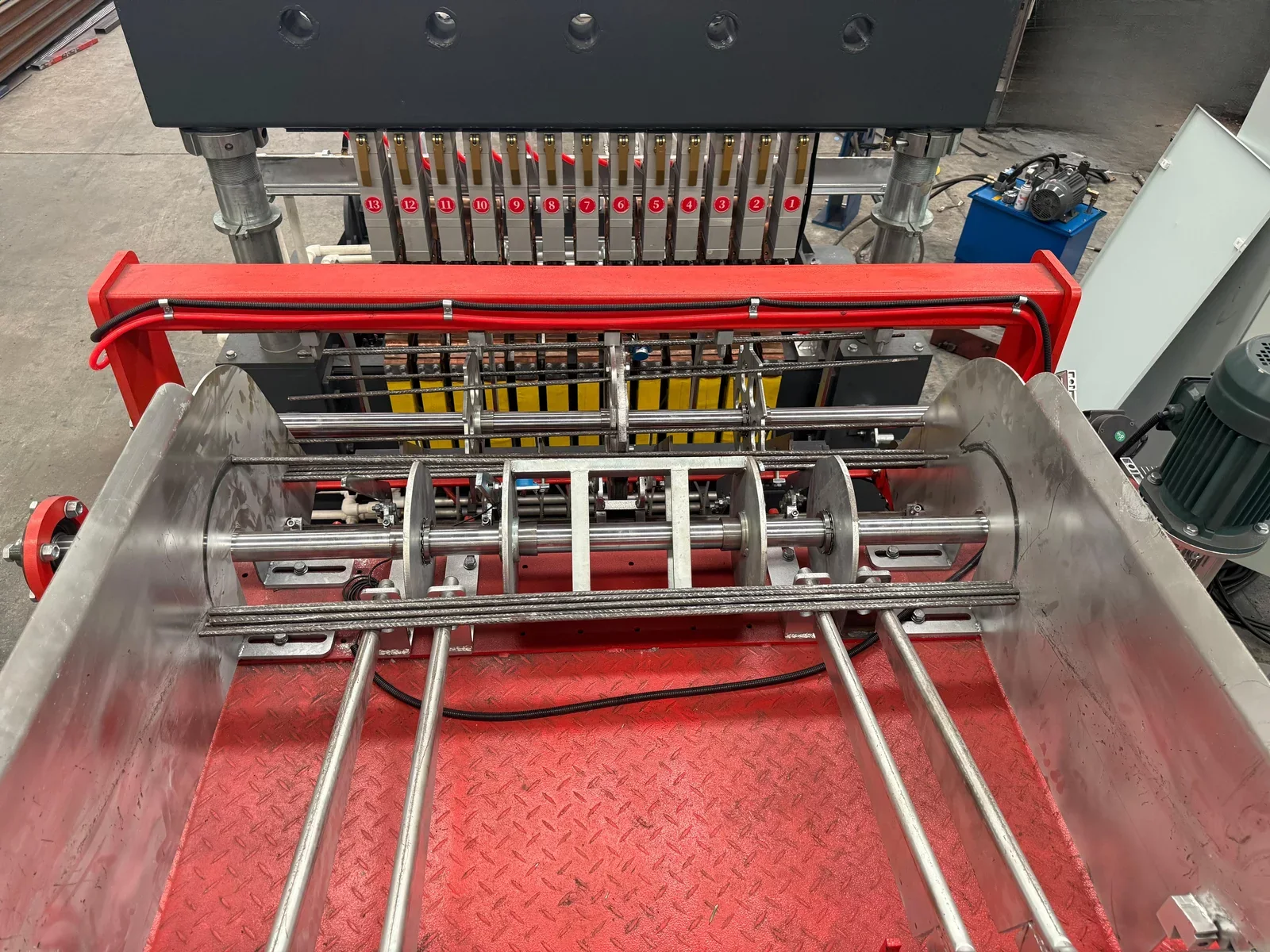

Cross-wire placement
Pre-cut wires are indexed into the welding position according to the programmed mesh pitch.

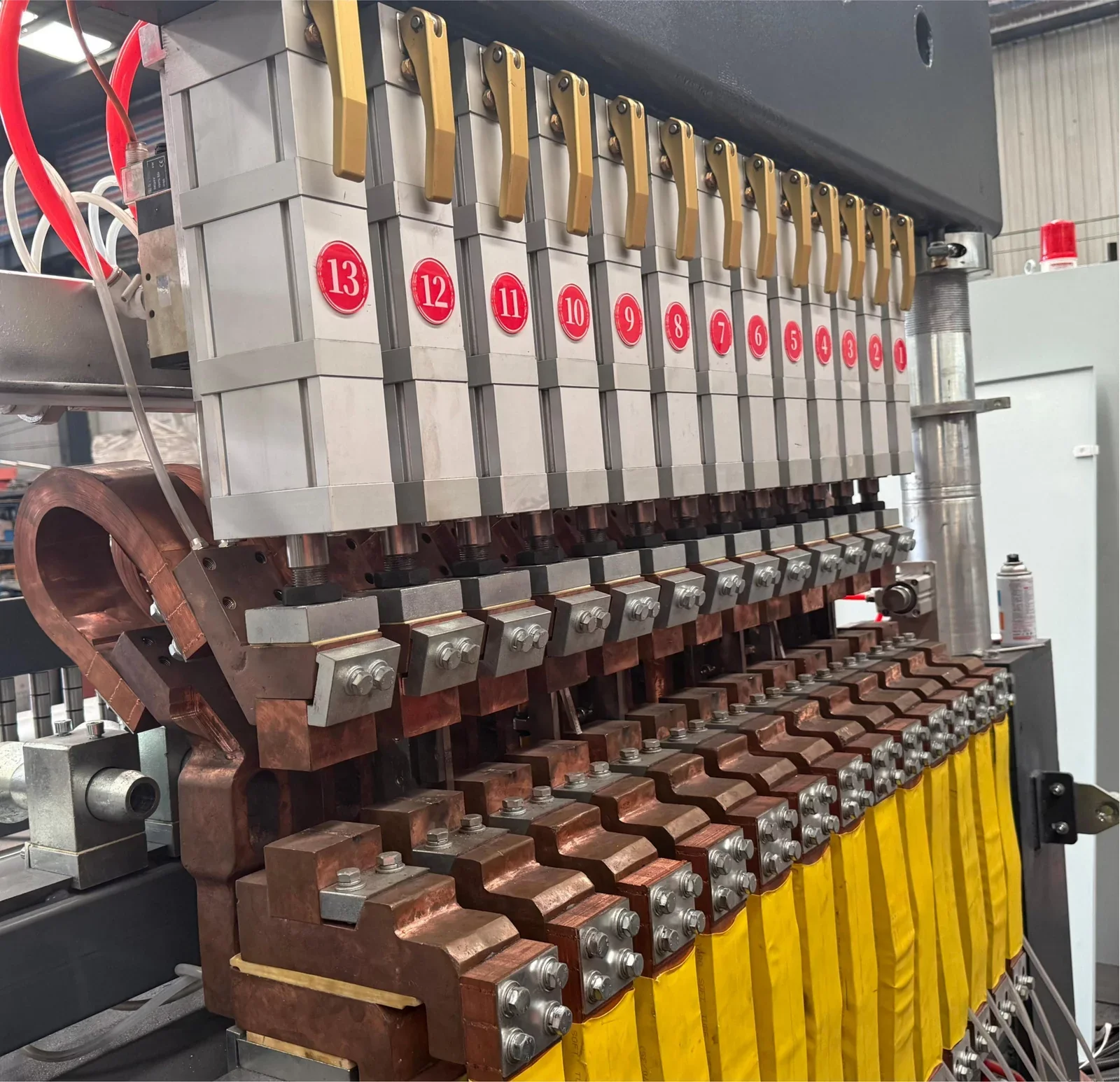

Rigid welding frame
A high-rigidity cabinet structure limits deflection while the transformer banks deliver the required welding energy.
Cooling and protection
Water circulation, temperature sensing and fault shutdown protect electrodes and transformers during long runs.

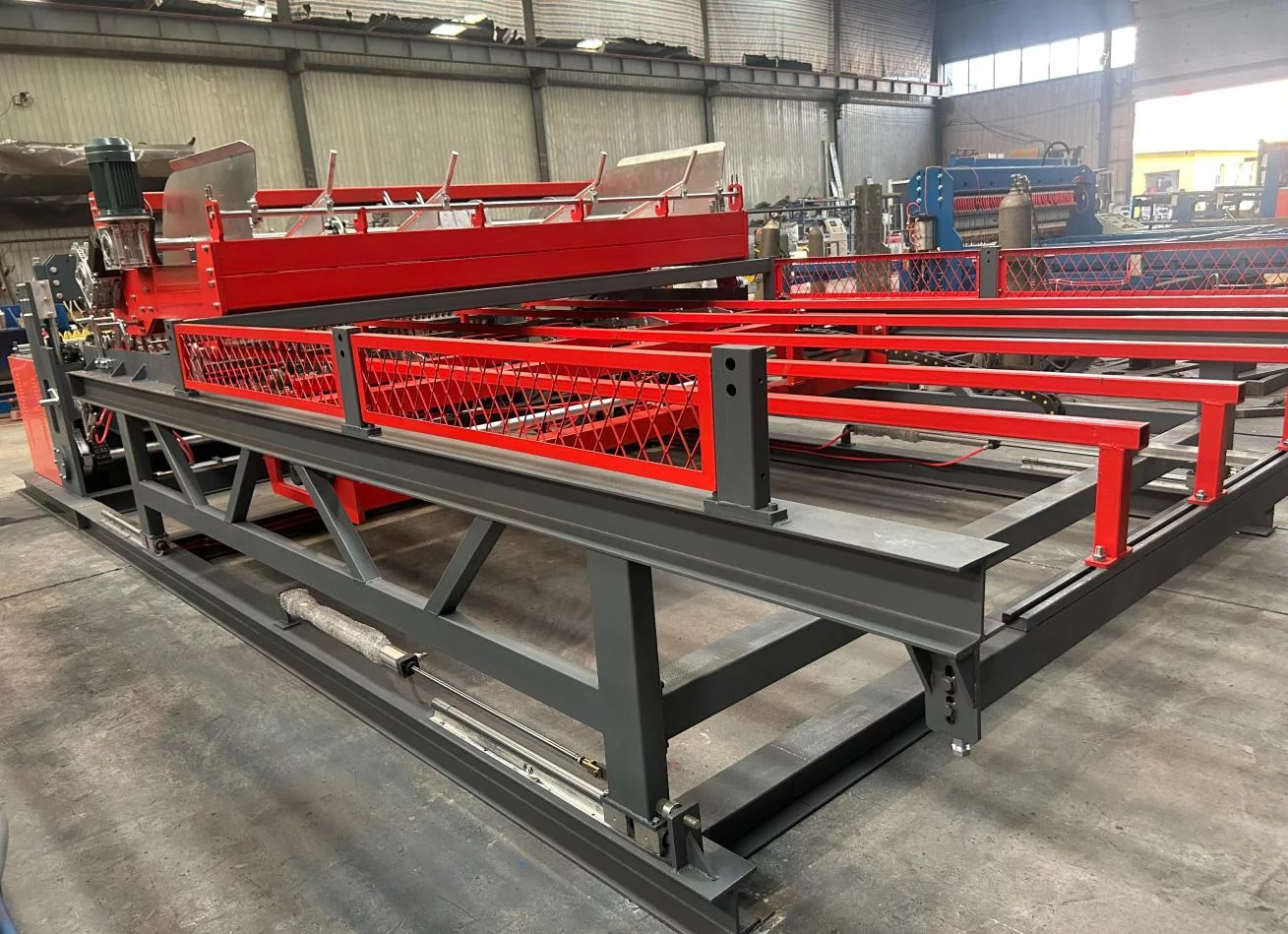

Servo pulling
The mesh carriage controls panel length and limits dimensional variation across heavy welded panels.
Factory verification
The configured line is trial-run with representative wire and mesh settings before shipment.
Machine Data
Technical Parameters
| Mesh width | 1200 / 1600 / 2100 / 2500 / 3000 mm |
| Mesh length | Up to 6000 mm |
| Wire diameter | 3.0–8.0 mm |
| Line-wire spacing | 100–200 mm |
| Cross-wire spacing | 100 mm and above |
| Welding heads | 12 / 16 / 20 / 24 / 32 pcs |
| Transformer | 125 KVA per head; 3–8 banks |
| Welding speed | 60–80 cycles/min |
| Tolerance | ±2 mm per 2 m |
Parameters are reference configurations. Final values are confirmed against the required wire material, mesh specification, output and factory conditions.
Frequently Asked Questions about the Mining Support Mesh Welding Machine
Q: What panel sizes and wire diameters can this machine produce?
A: The machine produces mesh widths of 1200mm, 1600mm, 2100mm, 2500mm or 3000mm, with panel lengths up to 6000mm. Wire diameter ranges from 3.0mm to 8.0mm, suitable for a wide range of mining and tunnel support requirements.
Q: How accurate and consistent is the mesh produced?
A: The line maintains a tolerance of ±2mm per 2m, ensuring reliable, consistent support mesh for underground roadway and tunnel reinforcement applications.
Q: What welding head and transformer configurations are available?
A: The machine is available with 12, 16, 20, 24 or 32 welding heads, each paired with a 125 KVA transformer, using 3 to 8 transformer banks depending on the model, for stable heavy-duty production.
Q: Do you provide after-sales support and training?
A: Yes, we provide installation guidance, operator training and technical support to ensure smooth production after delivery.
Production Uses
Applications
Typical Applications
- Underground mine roadway support
- Tunnel lining and stabilization mesh
- Rockfall and slope reinforcement panels
- Heavy construction reinforcement mesh
Need a different specification?
Wire diameter, mesh size, output, automation and production-line layout can be configured for your factory and finished product.
Project Support
From Specification to Production
1. Requirement Review
We review your wire, mesh drawing, target output and available workshop layout before recommending a configuration.
2. Factory Build
Manufacturing progress can be shared during production, with the mechanical and electrical system assembled as one coordinated line.
3. Trial & Inspection
The completed machine is trial-run before shipment. Remote video inspection and sample confirmation are available.
4. Delivery & Support
Layout drawings, operating guidance, commissioning support, operator training and spare-parts service are provided for the project lifecycle.
Machine Details
Structure and Production Details
Get a Configuration & Quote
Send your wire diameter, mesh width, spacing, finished format and target output.
