XFW-1600G — An automatic production line for welded wire cable trays used in data centers, telecom, industrial plants and public buildings.
Product Overview
The XFW-1600G line automates pre-cut wire feeding, welding, mesh advancing and fixed-length production for wire mesh cable trays. Its water-cooled welding system and industrial PLC provide stable welds, quick specification changes and predictable output for structured cabling manufacturers.
Key Features
- Automatic pre-cut wire feeding with reduced manual loading
- 13 consistent welding points across a 1600 mm standard width
- Touchscreen-adjustable transverse pitch
- Two 180 KVA water-cooled transformers
- PLC fault monitoring and automatic safety shutdown
- Optional layout and width customization for target tray formats
Technical Specifications
| Model | XFW-1600G |
| Mesh width | 1600 mm; other widths on request |
| Mesh length | 3000 mm segmented production |
| Wire diameter | 3–6 mm |
| Line-wire pitch | 25–200 mm |
| Cross-wire pitch | 50–200 mm |
| Welding speed | Up to 15–20 cycles/min |
| Transformer | 180 KVA × 2, water-cooled |
| Compressed air | 0.5–0.7 MPa |
Applications
- Data centers and server rooms
- Telecom and 5G equipment facilities
- Industrial plants and automated warehouses
- Commercial buildings and new-energy power sites

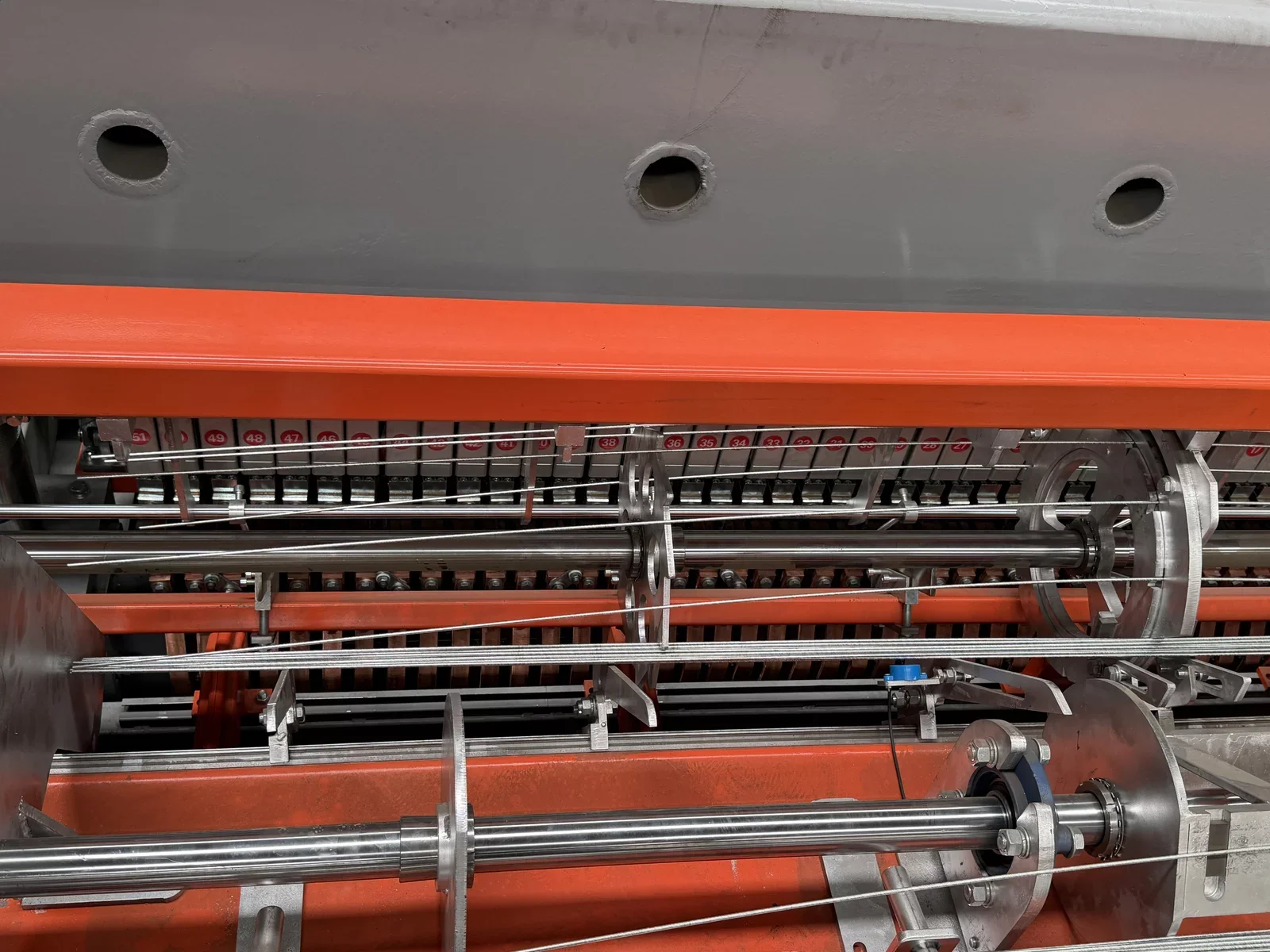

Machine Details
Machine Operation Video
Service Across the Project Lifecycle
Before production, our engineers review your mesh specifications, output target and factory layout. During manufacturing, progress updates, inspection records and trial-run media keep the process transparent. After delivery, complete drawings, manuals and commissioning guidance are supplied, backed by 24/7 technical support, responses within 48 hours, global spare parts and optional overseas installation and training.
Get a Configuration & Quote
Send us your target wire diameter, mesh width, mesh spacing, finished format and required output. Our engineering team will recommend a suitable configuration.
