XFW-1200 / XFW-1600 — An automatic welded-mesh line for poultry cages, rabbit hutches, quail enclosures and other light livestock fencing.
Product Overview
The XFW series integrates wire payoff, straightening, resistance welding, automatic cross-wire feeding, servo mesh pulling and cutting into one coordinated process. It improves output consistency while reducing manual handling and the number of operators required per shift.
Key Features
- Automatic wire payoff and straightening for flat finished panels
- 125 KVA water-cooled transformers with temperature protection
- Chromium-zirconium copper reversible electrode blocks
- Cross-wire hopper with gripper detection and one-wire-at-a-time feeding

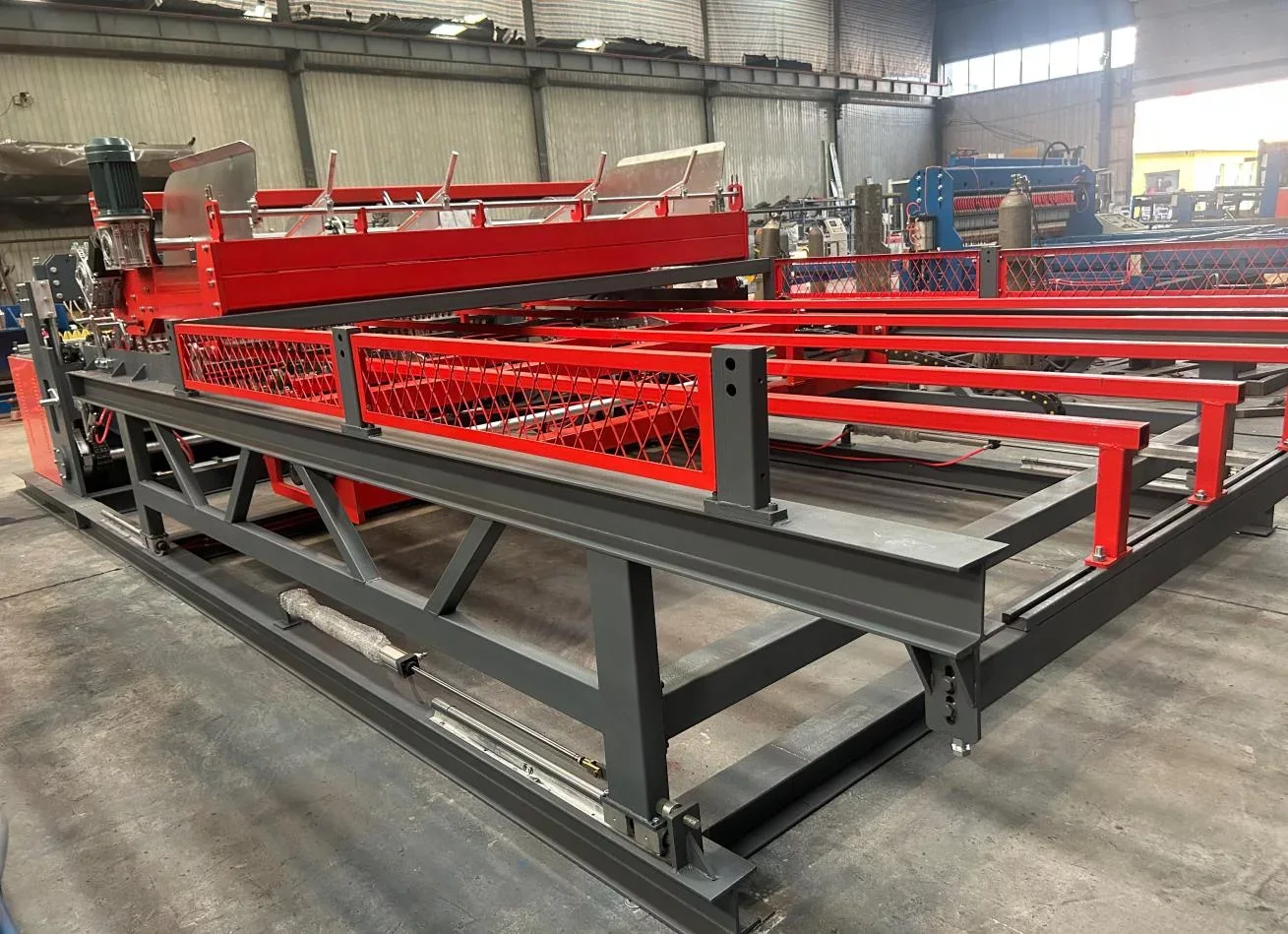

- Panasonic servo-driven mesh pulling with low cumulative error
- PLC touchscreen control, fault detection and automatic alarm shutdown
Technical Specifications
| Model | XFW-1200 / XFW-1600 |
| Mesh width | 1200 / 1600 mm |
| Wire diameter | 2.0–4.0 mm |
| Mesh length | Up to 3000 mm |
| Electrodes | 24 / 32 pcs |
| Cross-wire spacing | 25 mm and above |
| Line-wire spacing | 12.5–200 mm |
| Welding speed | 60–80 cycles/min |
| Output | Flat panels |
Applications
- Layer and broiler chicken cage mesh
- Parent-stock and duck breeding cages
- Rabbit and quail enclosures
- Lightweight farm-animal fencing panels
Machine Details
Service Across the Project Lifecycle
Before production, our engineers review your mesh specifications, output target and factory layout. During manufacturing, progress updates, inspection records and trial-run media keep the process transparent. After delivery, complete drawings, manuals and commissioning guidance are supplied, backed by 24/7 technical support, responses within 48 hours, global spare parts and optional overseas installation and training.
Get a Configuration & Quote
Send us your target wire diameter, mesh width, mesh spacing, finished format and required output. Our engineering team will recommend a suitable configuration.
